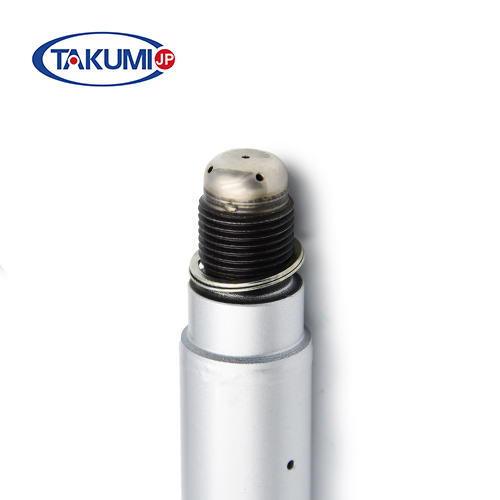

Takumi prechamber industrial spark plug S-R6A15 for MWM and Caterpillar natural gas engine
Why use a pre-chamber spark plug?
A pre-chamber spark plug is used in the engine’s pre-combustion chamber. Energy discharge is distributed over a larger surface area, which concentrates fuel in the spark gap – resulting in better control over gas pressure during discharge, and lowering the electrode temperature. Pre-chamber spark plugs therefore offer superior safety and performance to some alternatives, as well as a longer service life due to reduced electrode erosion.
Pre-chamber spark plugs require a lower operating voltage in high-pressure engines. They are also less susceptible to short-circuits and misfires, even in the presence of moisture.
Detail Specification
| Type | S-R6A15 |
| Thread | M18*1.5 |
| Reach | 26mm |
| Hex | 22.2mm |
| Seat Type | Flat |
| Gap | 0.3mm |
| Electrode Design | Prechamber |
| Cable Length | 310mm |
| Shield Length | 196mm |
| Resistor or Non-resistor | Resistor |
Replacement
| JENBACHER | 1245-3562, 1234-4841, 1245-3566, 1234-3546 |
| CATERPILLAR | 1234-4096, 1245-3562, 1234-3055, 1231-9475 1234-2668, 1234-3755, 1234-4843, 2G 3209000017, Storm 0190880022, 1245-3546, 1245-3564 |
| OTHER | 12343048, 12342376, 12343758, 12344098 |
Application
| MWM | TCG 2016 V08 C, TCG 2016 V12 C, TCG 2016 V12 C_515, TCG 2016 V16 C |
| CATERPILLAR | CG132-8, CG132-12, CG132-16 |
TAKUMI Advantages
1. Prouducts are enjoying great reputation for its diversification, innovation and superior quality.
2. Releasing new items periodically and customizing products to OEM quality.
3. Excellent service and Durable use of products.
4. Preparing goods withing 5-10 days after order confirmed, if big order, we need 30 days get ready.
5. Trial order is acceptable with small quantity.
6. All TAKUMI spark plugs are 100% pre-fired to assure the highest quality possible.
7. Copper glass seal bonds the center electrode and insulator together for a gas-tight seal. Maintains proper heat and excludes hot combustion gases.
8. Purified Alumina Powder Insulator provides exceptional dielectric strength and thermal conductivity allowing the material to stand up to extreme stress.
